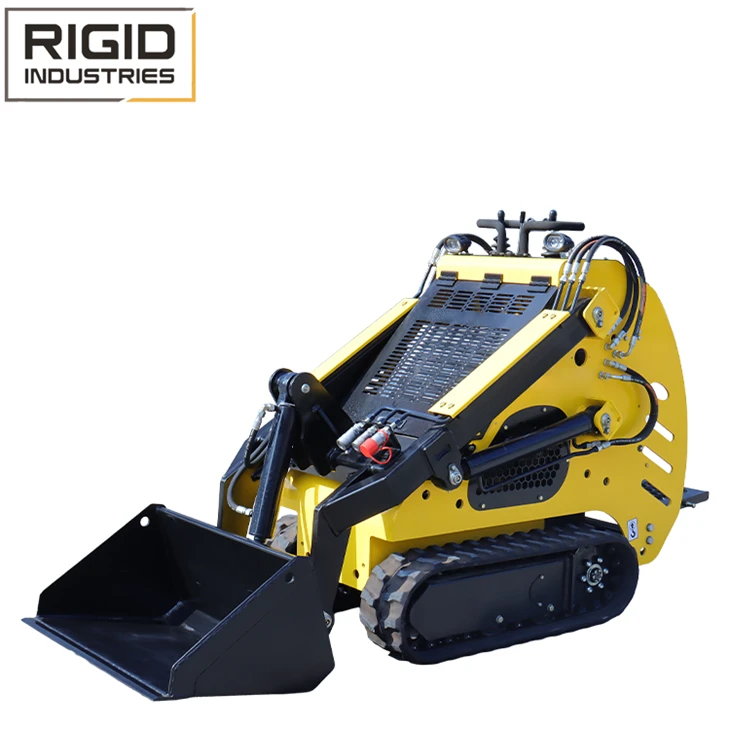

380kg Crawler Skid Steer Loader

Product Parameter (specification)



Item	Metric	Inch
Max working height	2178 mm	85.7 inch
Max pin height	1890 mm	74.4 inch
Max dump height	1395 mm	54.9inch
The highest point discharge distance	620 mm	24.4 inch
Bucket swing angle	79°	79°
Bucket unloading angle	36°	36°
Opening-closing angle	14°	14°
Angle of departure	25°	25°
Total height	1374mm	54.1 inch
The height from the ground	90 mm	3.54 inch
Wheelbase	705 mm	27.8 inch
No bucket length	1900 mm	74.8 inch
Total width	830mm	32.7inch
Bucket width	835 mm	32.9inch
Total length(L)(with bucket)	2400 mm	94.5 inch
Turning radius (R)	1850 mm	72.8 inch

Main performance parameters:

Engine		Model		HONDA /GX690
		Rated power		18.2KW/25HP
		Rotating speed(rpm)		3000
Noise(Db)				≤90
Hydraulic System		Hydraulic pressure(Mpa)		20
		Cycle time(s)		Raise		Dump	Lower
				4.10		1.9	3.65
Performance parameters			Metric		inch
	Load weight (kg)		240 Kg		533 Lb
	Bucket capacity		0.12m3		4.26 ft3
	Max lifting power		850Kg		1888Lb
	speed		6Km/h		3.71mlie/h
	Operating weight		1185kg		2633Lb
Main pump		Qty: 2
Flow of main pump		36L/min
Valve		Qty :2







Prodection details

Features

Compact & Maneuverable
With its small footprint and tight turning circle, this mini loader easily navigates confined spaces. Perfect for urban construction sites, indoor renovation projects, and agricultural work like orchards or greenhouses where larger equipment can't reach.

Power-Packed Performance
Don't let the size fool you - equipped with a premium-brand engine and hydraulic system, this mighty machine delivers serious power with dual output capability. It's the hardworking assistant you need for tough jobs.

Versatile Tool System
Boost productivity with interchangeable attachments including:

Earth augers for post holes

Pallet forks for material handling

Snow blades for winter maintenance

Trenching tools for utility work
This transformable design adapts to countless job requirements.

Gentle on Surfaces
The rubber track/tyre options minimize ground disturbance, making it ideal for delicate areas like:

Landscaped gardens

Sports fields

Finished floors
Protecting sensitive surfaces while getting the job done right.

Key improvements:

More conversational tone

Added practical examples

Better flow between features

Removed brand reference

Technical details woven naturally into descriptions

Shows benefits rather than just listing features
