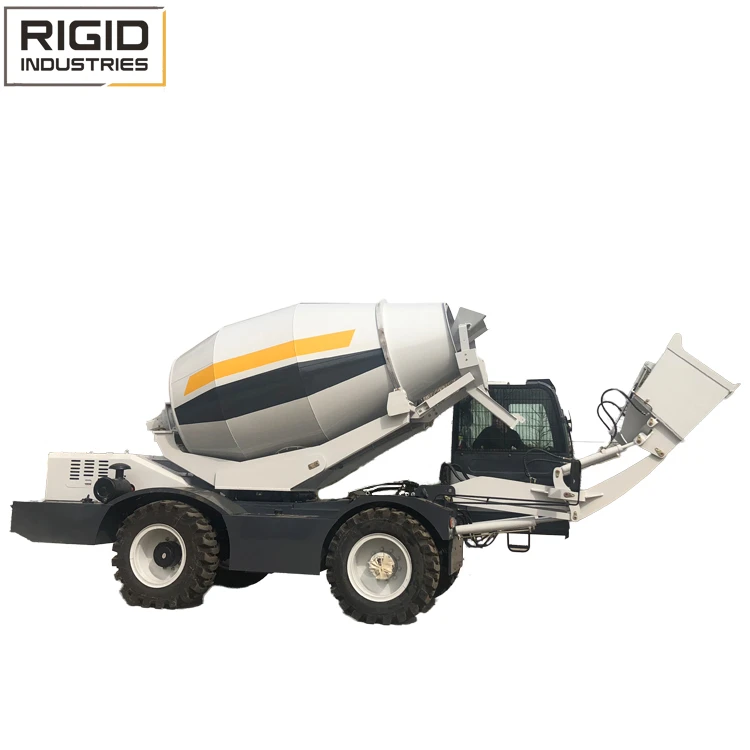

Concrete Mixer Truck
Your Professional Concrete Mixer Truck Supplier
RIGID INDUSTRIES CO., LTD is a trading & manufacture for Chinese construction machines. Our hot selling products are wheel loaders, excavators, skid loaders, forklifts, backhoe loaders etc. They are widely used in engineering construction, port handling, municipal construction, gardening, environmental sanitation, water conservancy, agriculture and other fields.
Why Choose Us
Product Certification
RIGID INDUSTRIES is thoroughly familiar with international standards and regulatory requirements for machinery. The majority of our products are certified under CE and other applicable international certifications.
Customized Services
We offer comprehensive customization options for the entire machine, including color, paint, logo, and nameplate. Additionally, we support customers in brand registration and can provide the necessary authorization documentation.
Free Spare Parts Shipping
We assist customers in sourcing and maintaining local inventories of spare parts. In the event of component failure within the warranty period, we will arrange for the free shipping of required replacement parts.
Professional Support Services
Our team is available 24/7 to ensure timely responses to customer inquiries. In the case of technical issues, we promptly coordinate with our technical department to deliver efficient and professional solutions.
Specification
|
PRODUCTIVITY |
BATCH≤15MINS, 4BATCHS/HOUR |
|
Drive mode |
4 x 4 |
|
Steering |
Front steering |
|
ENGINE |
YUCHAI ENGINE: FOUR-CYLINDER 2200RPM,110KW |
|
SPEED |
HIGH SPEED: 38.5KM/H; LOW SPEE:7.5KM/H |
|
Gear number |
Three forwards, three backwards |
|
Fuel consumption |
Idle state 2L-3L, working state 8L-10L. |
|
TIRE |
16/70－24(Steel wire tyre) |
|
DRUM |
Geometric volume 6.8 cubic meters, the best stirring 4.5-5.5 cubic meters |
|
Spiral blade in tank |
Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
|
Mixing tank 270°discharges |
The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |
|
TIPPING CHUTE |
Equipped with 2 chute for detachable to increase discharging length |
|
Tilt of mixing tank |
16° |
|
SHOVEL |
Shovel capacity: 0.72³ |
|
Bucket discharge switch |
Hydraulic gate, electric control |
|
OPERATION HANDLE |
|
|
MOVING HYDRAULIC |
PUMP:DENGHONG |
|
Torque converter(HANK) |
|
|
Work hydraulic |
PUMP/valve: DENGHONG |
|
Mixing system |
SPEED REDUCER:(HANK) |
|
Mixing motor(ZHENJIANG DALI) |
|
|
Drive axle |
LIUFENG |
|
WATER SUPPLY |
HYDRAULIC DRIVING SELF-PRIMIING PUMPS. |
|
HIGH-PRESSURE WATER PUMP WASH |
HIGH-PRESSURE WATER PUMP WASH |
|
Weighing system |
Electronic weighing system (language optional) |
|
VOLTAGE |
Battery 24V-100A 2 pieces |
|
HYDRAULIC OIL BOX |
TANKAGE180L, SUMMER:NO68 HYDRAULIC OIL, WINTER:NO46 HYDRAULIC OIL, VERY COLD ZONE: NO35 HYDRAULIC OIL |
|
Water tank capacity |
620L |
|
Diesel tank capacity |
190L |
|
Whole weight |
COMPLETE VEHICLE KERB MASS 9200kg |
|
CAB |
Prevent falling objects cab |
|
Adjustable steering wheel |
|
|
Adjustable seat |
|
|
Seat belts |
|
|
Fire extinguisher |
|
|
Astern image |
|
|
ALARM LAMP |
STANDARD CONFIGURATION |
|
RADIO |
STANDARD CONFIGURATION |
|
A/C |
Optional |
|
ESCAPE HAMMER |
STANDARD CONFIGURATION |
|
Astern sound prompt |
STANDARD CONFIGURATION |
|
Walking control mode |
STANDARD CONFIGURATION：Electric control |
Enhancing Efficiency and Productivity
Gone are the days of labor-intensive manual mixing methods. Concrete mixer trucks have automated the mixing process, eliminating the need for backbreaking labor. This not only reduces human error but also increases output, as the machines can mix concrete at a much faster rate than traditional methods.
Ensuring Quality and Consistency of Concrete
When it comes to construction, consistency is crucial in achieving durable and reliable structures. Concrete mixer trucks play a vital role in ensuring the quality and consistency of the concrete used in a project.
Reducing Labor Costs and Time
Concrete mixer trucks offer significant cost savings by reducing labor requirements. As the automated mixing process eliminates the need for manual labor, construction crews can allocate their resources more efficiently.
Minimizing Waste and Overuse
Concrete mixer trucks play a crucial role in minimizing waste and material overuse in construction projects. Through their precise and controlled mixing process, these trucks ensure that the right proportions of cement, aggregates, water, and additives are used.
Applications of Concrete Mixer Truck
Residential Construction Projects
Concrete mixer trucks are generally used for residential production duties, including building foundations, patios, and driveways. With a mixer truck on site, you can quickly and easily combine and transport the concrete desired for the challenge, making it a more green and cost-effective choice.
Commercial Construction Projects
Concrete mixer trucks are also commonly used for larger commercial construction projects, including constructing parking systems and excessive upward push houses. With a mixer truck on the internet web page, you could ensure a constant supply of extraordinary concrete, allowing you to maintain the mission transferring and on-time desk.
Infrastructure Development
Concrete mixer motors are crucial for improving infrastructure, such as highways, bridges, and other transportation structures. With the potential to mix and transport concrete quickly and efficaciously, one's motors are essential for completing one's big-scale responsibilities on time and within the rate range.
Methods to Fill a Concrete Mixer Truck
Central Mix Plant
In the central mix plant loading method, all concrete ingredients are mixed in a stationary mixer. This happens before they are poured into the truck mixer. This pre-mixed concrete improves consistency and uniformity for transport. The high-speed mixing process involves about 70 revolutions, spinning between 12 to 18 turns per minute.
Transit Mix Plant
The transit mix plant method fills the truck mixer directly with raw materials, skipping the pre-mixing stage. At the plant, mixing water is usually added to create the concrete mix for transport. This concrete blend is then mixed during transportation. A variation of this, shrink mix concrete, is mixed in the truck mixer at high speed. It’s ready in less than 90 seconds with about 30 drum spins for uniformity.
The Working Process of Concrete Mixer Truck
Loading the Materials
The process starts by loading raw materials such as cement, sand, aggregates, and water into the drum. In volumetric mixers, materials are stored in separate compartments and mixed on-site for precise control over the concrete's composition. The concrete mixer ensures even distribution of ingredients before mixing begins.
01
Mixing Process
Once loaded, the drum rotates continuously, driven by a hydraulic system, to blend the materials thoroughly. Internal spiral blades or turbines ensure homogeneity, typically achieving a uniform mix in under 50 seconds. Continuous rotation prevents settling or premature hardening during transit.
02
Transportation
The truck transports the mixed concrete while maintaining drum rotation to preserve consistency. Powerful engines (250–400+ HP) and multi-axle designs ensure stability and weight distribution. Some mixers can operate normally even under a 10% overload condition.
03
Discharging Concrete
At the construction site, the drum reverses rotation to discharge the concrete efficiently (typically in under 15 seconds). Volumetric mixers allow adjustments to the mix design on-site before pouring or pumping the concrete into place.
04
Return for Next Batch
After discharge, the truck returns to the batching plant or material source to reload for the next batch. The cycle repeats, ensuring a steady supply of fresh concrete to the job site.
05
● Full Machine Customization: Color, paint, logo, and nameplate can be customized to match your brand.
● Brand Registration Assistance: We support brand registration and provide authorization documentation.
● Configuration Flexibility: Adjustments based on drawings or market feedback are available.
● Technical Compliance: Emission and control systems can be tailored to regional standards.
Packaging and Shipping
|
Packaging |
Cartons cases/Wooden cases/lron frame/Naked attire(as your as your requirement) |
|
Shipping |
Ocean freight |
Other Order Information
|
Method of Payment |
T/T, L/C |
|
Minimum order quantity |
1 unit |
|
Delivery time |
30-45 days |
|
Incoterms |
FOB, CIF |
