10t Crawler Crane
Engine Brand: Yanmar
Engine Type: Diesel
Cab: No
Lift Capacity: 10t
10t Crawler Crane
Product Parameter (specification)
|
Overall Dimensions |
5550mm*1850mm*2300mm |
|
Machine Weight |
9200kg |
|
Engine |
Yunnei YN27GBZ |
|
Max. Working Radius |
18.5m*0.8T |
|
Max. Ground Lift |
20m |
|
Outrigger |
Manual/Automatic |
|
Max. Extension of Outrigger |
Side: 7400mm; Front: 7000mm; Rear: 6000mm |
|
Traveling Model |
Hydraulic Motor |
|
Traveling Speed |
Low: 0-0.8km/h; High: 0-2km/h |
|
Winch Way |
Hydraulic Motor |
|
Speed of Hook Lifting |
0-12m/min |
|
Wire Rope |
Φ12mmx90m(Max) |
|
Boom Form |
Hexagonal fully automatic 5-segment |
|
Boom Length |
5m-18.5m |
|
Telescopic Boom Lifting Time |
50s Fully Extended |
|
Boom Angle/Time |
0~78°/60s |
|
Swing Angle/Speed |
0-360°/ 120s |
|
Gradeability |
20° |
|
Track Width |
2,570mm*350mm |
|
Hydraulic Oil Tank Capacity |
130L |

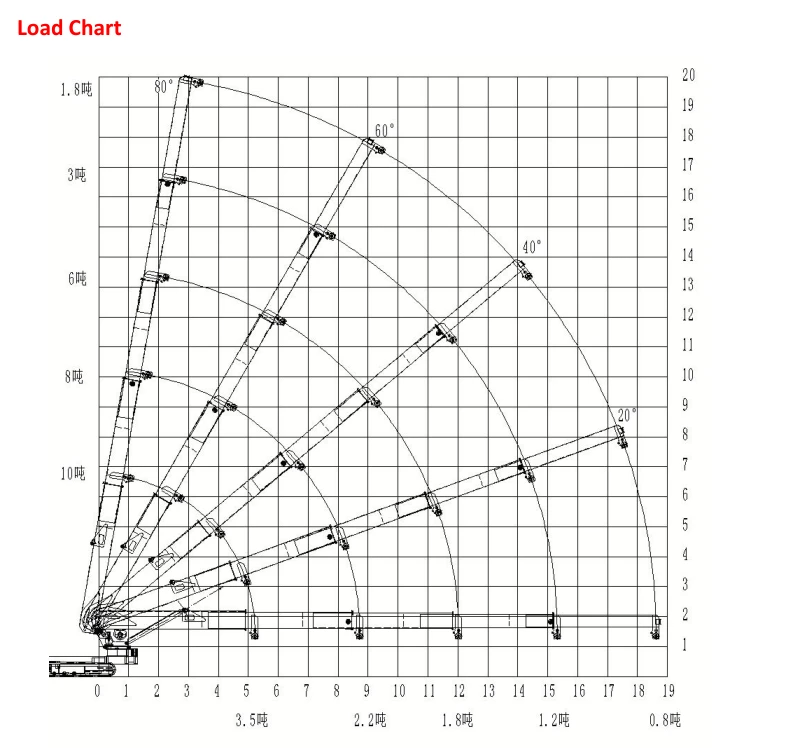

Lifting Capacity:
|
5.2m Lifting Arm |
5.2-8.8m Arm |
8.8-12m Arm |
12-15.2 Arm |
15.2-18.8 Arm |
|||||
|
Working Diameter |
Total Lifting Weight |
Working Diameter |
Total Lifting Weight |
Working Diameter |
Total Lifting Weight |
Working Diameter |
Total Lifting Weight |
Working Diameter |
Total Lifting Weight |
|
＜2.5m |
10t |
＜2.5m |
8t |
＜3.8m |
6t |
＜5m |
3t |
＜6m |
1.8t |
|
3m |
8t |
3m |
7t |
4m |
5t |
6m |
2.85t |
8m |
1.65t |
|
3.5m |
6t |
4.5m |
6t |
5m |
4.5t |
7m |
2.8t |
9m |
1.56t |
|
4m |
4.5t |
5m |
5t |
6m |
4t |
8m |
2.4t |
10m |
1.45t |
|
5.2m |
3.5t |
5.5m |
4.5t |
7m |
3.5t |
9m |
2.2t |
11m |
1.42t |
|
6m |
4t |
8m |
3.2t |
10m |
2t |
12m |
1.38t |
||
|
6.5m |
3.2t |
9m |
2.8t |
11m |
1.8t |
13m |
1.35t |
||
|
7m |
2.8t |
10m |
2.4t |
12m |
1.6t |
14m |
1.25t |
||
|
7.5m |
2.2t |
11m |
2t |
13m |
1.4t |
15m |
1.2t |
||
|
12m |
1.8t |
14m |
1.35t |
16m |
1.15t |
||||
|
15m |
1.2t |
17m |
1.1t |
||||||
|
18m |
1t |
||||||||
|
19m |
0.8t |
||||||||
Product feature and application
The Spider Crane has a compact size, great strength, and a high level of safety.
The Spider Crane is designed specifically for glass installation work and is widely used in indoor and narrow areas. Its compact body can easily access construction sites and help reduce operational costs.
It is also easy to transport. The lifting capacity generally ranges from 3 to 8 tons, which can satisfy most lifting needs at construction sites. We can also offer models with a lifting capacity of 8 to 12 tons to provide more options for customers.
Prodection details
OEM/ODM Customization Support (Wholesale-Friendly)
- Full Machine Customization: Color, paint, logo, and nameplate can be customized to match your brand.
- Brand Registration Assistance: We support brand registration and provide authorization documentation.
- Configuration Flexibility: Adjustments based on drawings or market feedback are available.
- Technical Compliance: Emission and control systems can be tailored to regional standards.
Frequently Asked Questions (FAQ)
What is the delivery time?
Standard production time is approximately 30 days from the date of order confirmation and deposit payment.
What is the warranty period?
All equipment comes with a 1-year warranty covering manufacturing defects and core components.
What is the minimum order quantity?
The minimum order quantity (MOQ) is 1 unit, making it convenient for small businesses or trial orders.
What are the payment terms?
We require a 30% deposit upfront. The remaining 70% must be paid before shipment.
