Name: China 5t Mini Crawler Crane Manufacturers Suppliers Factory - Buy 5t Mini Crawler Crane for Sale - Rigid Industries
Brand: RIGID
SKU: 243554679

Drive Type: Track
Engine Brand: Yanmar
Engine Type: Diesel
Cab: No
Lift Capacity: 5000kg

Send Inquiry

Product Introduction

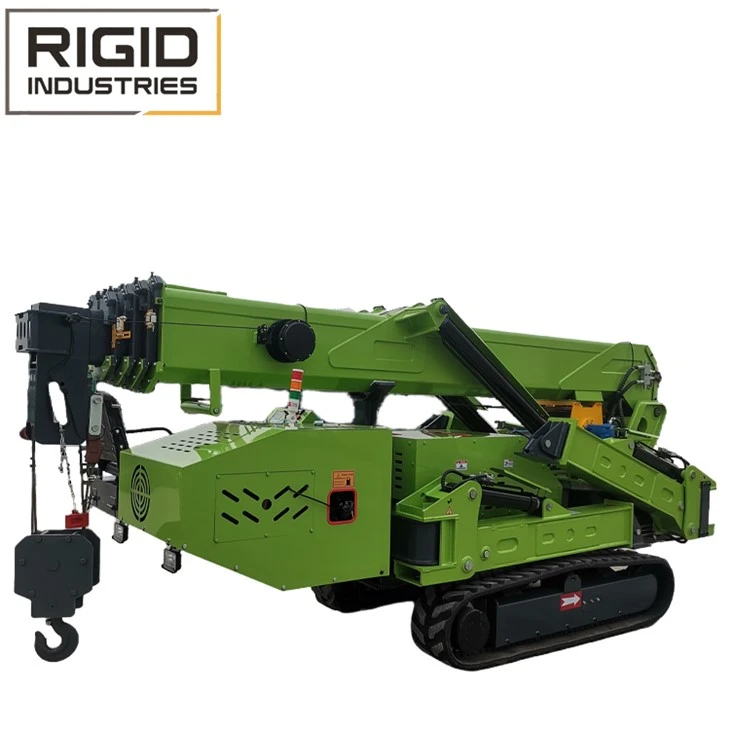

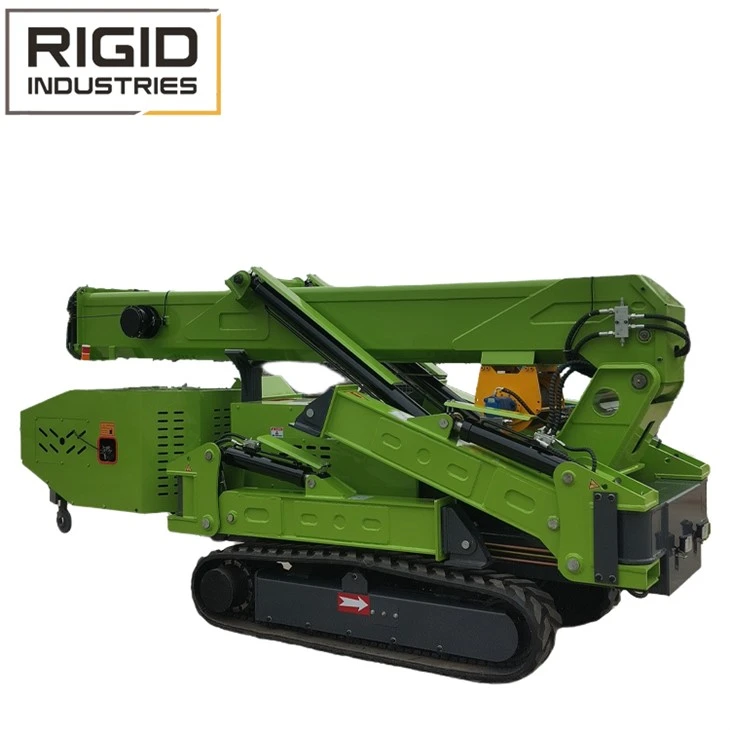

Mini Crawler Crane

Product Introduction

1. The spider crane has a compact size, large strength and high safety level.
2. The spider crane is focusing on completing the glass installation work and also widely used at indoors and narrow areas. The compact body can easily enter construction sites and reduce the use costs.
3. It also easy to transport. The lifting capacity is generally 3-8t, which can satisfy the most of the lifting needs at construction sites. We also can make 8-12t for providing more options to customers.

Product Parameter (specification)

Overall Dimensions	4,6501,4002,160mm
Machine Weight	6,300kg
Engine	Yanmar 4TNV98CT 42.2kw EPA4
Cylinder	4-φ98×110
Pressure	18.3
Displacement	3.319L
Max. Working Radius	14.8m*0.3t
Max. Ground Lifting Height	15.6m
Winch Way	Hydraulic Motor Drive, 2-speed
Outrigger	Manual/Automatic
Max. Extension of Outrigger	Side: 5,600mm; Front: 5,560mm; Rear: 5,000mm
Traveling Model	Hydraulic Motor
Traveling Speed	Low: 0-0.8km/h; High: 0-2km/h
Speed of Hook Lifting	6m/min Slow; 11m/Min Fast
Wire Rope	Φ12mmx70m(Max)
Boom Form	Hexagonal fully automatic 5-segment
Boom Length	5m-16.5m
Telescopic Boom Lifting Time	40s Fully Extended
Boom Angle/Time	0~78°/46s
Swing Angle/Speed	0-360°/ 120s
Gradeability	20°
Track Width	2,570mm*350mm
Hydraulic Oil Tank Capacity	100L

Prodection details

OEM/ODM Customization Support (Wholesale-Friendly)

Full Machine Customization: Color, paint, logo, and nameplate can be customized to match your brand.
Brand Registration Assistance: We support brand registration and provide authorization documentation.
Configuration Flexibility: Adjustments based on drawings or market feedback are available.
Technical Compliance: Emission and control systems can be tailored to regional standards.

🌿

EPA Tier 4

U.S. Emissions Standard

🇪🇺

EURO 5

European Emissions Certified

FAQ

Q: What is the leading time of RIGID 8 TON SPIDER CRANE ?

A: The leading time is about 20 days.

Q: What is the payment term will you accept?

A: 30% deposit, 70%TT balance payment before the shipping.

Q: What is the warranty for the RIGID 8 TON SPIDER CRANE ?

A: 6 months.

Q: What is the MOQ for RIGID 8 TON SPIDER CRANE ?

A: MOQ: 1 unit

Q: What after sale services can you provide?

A: We can ship some urgent parts to our customers for free through DHL or TNT if they are during the warranty.
They generally take 5-7 working days to our customers' hands.
If some parts are too big or too heavy, we will ship them with machines in the next order for free.

Q: Can you do OEM for overseas dealers?

A: Yes, we also can-do paint customization for our dealers, but it is only for a 40ft container's order.
