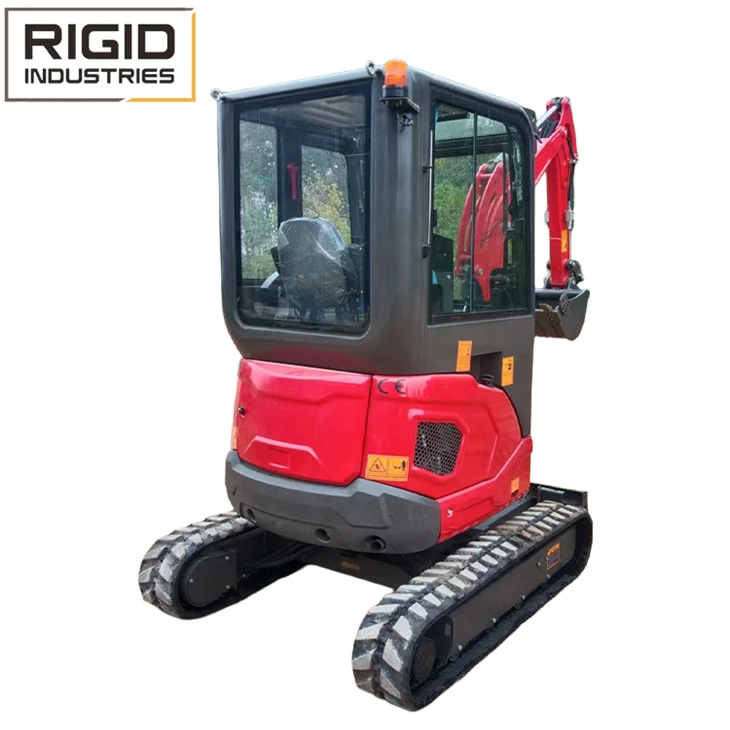

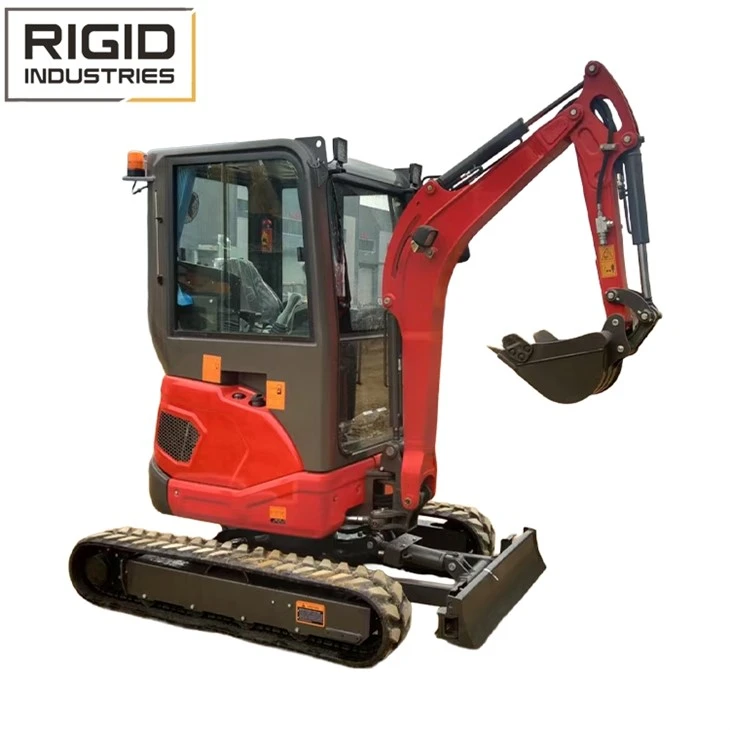

RE25 2.5t Mini Excavator
Engine Brand: Kubota
Engine Type: Diesel
Cab: Yes
RE25 Micro Excavator
product Introduction
The RE25 2.5t Micro Excavator is equipped with an enclosed cab, hydraulic pilot control, high and low speed options, swing arm, undercarriage stretch, zero-tail design, Kubota 3-cylinder diesel engine, and optional fan, heater and air conditioner.
The RE25 2.5t Micro Excavator also supports a wide range of attachments. Contact us to learn more.
Products Description
| Model | Unit | RE25 | |
| Operating weight | Kg | 2400 | |
| Bucket capacity | m³ | 0.07 | |
| Engine | Model | / | D1105-E4B |
| EFI or direct injection? | / | Direct injection | |
| Four strokes | / | 4 | |
| Water cooling | / | Water cooling | |
| Turbo-charging | / | Normally Aspirated | |
| Air to air intercooler | / | - | |
| No. of cylinders | / | 3 | |
| Rated power/speed | kw/rpm | 14/2200 | |
| Maximum torque/speed | N.m | 70.3/1600 | |
| Displacement | L | 1.123 | |
| Main performance | Swing speed | r/min | 10 |
| Grade-ability | % | 35 | |
| Bucket digging force | kN | 15.2 | |
| Arm digging force | kN | 9.2 | |
| Maximum tractive force | kN | 38.4 | |
| Hydraulic system | Main pump | / | Lezhuo |
| Rated flow of main pump | L/min | 48.4 | |
| Main safety valve pressure | MPa | 23 | |
| Undercarriage | Travel speed(H/L) | km/h | 4.3/2.5 |
| Ground pressure | kPa | 26.5 | |
| Track roller number | / | 3*2 | |
| Track number | / | 86*2 | |
| Oil Capacity | Fuel tank capacity | L | 22 |
| Hydraulic tank capacity | L | 20 | |
| Engine oil capacity | L | 5.1 | |
| Coolant | L | 8 | |
| Final drive | L | 0.3 | |
| Appearance size | Overall length | mm | 3555 |
| Overall width | mm | 1200/1500 | |
| Overall height | mm | 2720 | |
| Overall height(cab top) | mm | 2405 | |
| Counterweight clearance | mm | 484 | |
| Min.ground clearance | mm | 166 | |
| Min.tail swing radius | mm | 810 | |
| Track ground length | mm | 1530 | |
| Track length | mm | 1923 | |
| Track gauge | mm | 950/1250 | |
| Track width | mm | 250 | |
| Track shoes width(std) | mm | 250 | |
| Turn-able width | mm | 1200 | |
| Working scope | Max.digging height | mm | 3675 |
| Max.dumping height | mm | 2440 | |
| Max.digging depth | mm | 2628 | |
| Max.vertical wall digging depth | mm | 2098 | |
| Max.digging reach | mm | 4225 | |
| Max.digging reach at ground level | mm | 4165 | |
| Min.swing radius | mm | 1771 | |
| Min.height at min.swing radius | mm | 2720 | |
| Counterweight height | mm | 484 | |
| Ground length(Transportation) | mm | 3963 | |
| Standard | Length of boom | mm | 2000 |
| Length of arm | mm | 950 | |
| Bucket capacity | m³ | 0.07 | |
Method of Payment: T/T, L/C
Minimum order quantity: 1 unit.
Delivery time: 30-45 days.
Customization: Support.
Transportation: Ocean freight.
Incoterms: FOB, CIF.
6 Attachments For A 2.5t Micro Excavator
When you own a 2.5-ton excavator, it's important to have the right attachments for it. While you may use it primarily for digging, trenching and loading, there may be times when you need it for other tasks as well. That's why it's important to have a variety of attachments on hand, just in case.
By using additional attachments, a 2.5-ton excavator can improve performance, reduce costs and save money in the long run!
Thumbs
- Convenient for handling irregularly shaped objects.
- Especially when concrete or rocks don't fit in the bucket.
Breakers
- Mainly used for efficient demolition work.
- Commonly used in construction and paving applications.
Bulldozer Rake
- Heavy-duty attachment for moving large objects.
- Ideal for removing roots and rocks.
Excavator Trenchers
- Can break up hard and frozen ground at varying depths.
- Commonly used for trenching and pipe laying.
Bucket
- The most common and used piece of extension equipment.
- Digging, leveling, lifting and clearing trenches.
Quick Coupler
- Speed up the steps of changing accessories.
- Switch between multiple tasks as needed.
more photos
Product Description
The compact body makes it easy to maneuver in tight spaces, like yards and basements.
The Kubota engine is very fuel-efficient, unlike older models.
It's comfortable to drive, with shock-absorbing seats, low noise levels, and smooth operating levers, allowing you to drive all day without back pain.
An LCD screen displays fuel consumption and fault warnings, making it very user-friendly for beginners.
Thickened steel in key areas prevents damage.
The exterior features sleek lines without being bulky, and the eye-catching colors (such as Classic Engineering Yellow) give it a professional look.
OEM/ODM Customization Support (Wholesale-Friendly)
- Full Machine Customization: Color, paint, logo, and nameplate can be customized to match your brand.
- Brand Registration Assistance: We support brand registration and provide authorization documentation.
- Configuration Flexibility: Adjustments based on drawings or market feedback are available.
- Technical Compliance: Emission and control systems can be tailored to regional standards.
Frequently Asked Questions (FAQ)
What is the delivery time?
Standard production time is approximately 30 days from the date of order confirmation and deposit payment.
What is the warranty period?
All equipment comes with a 1-year warranty covering manufacturing defects and core components.
What is the minimum order quantity?
The minimum order quantity (MOQ) is 1 unit, making it convenient for small businesses or trial orders.
What are the payment terms?
We require a 30% deposit upfront. The remaining 70% must be paid before shipment.
