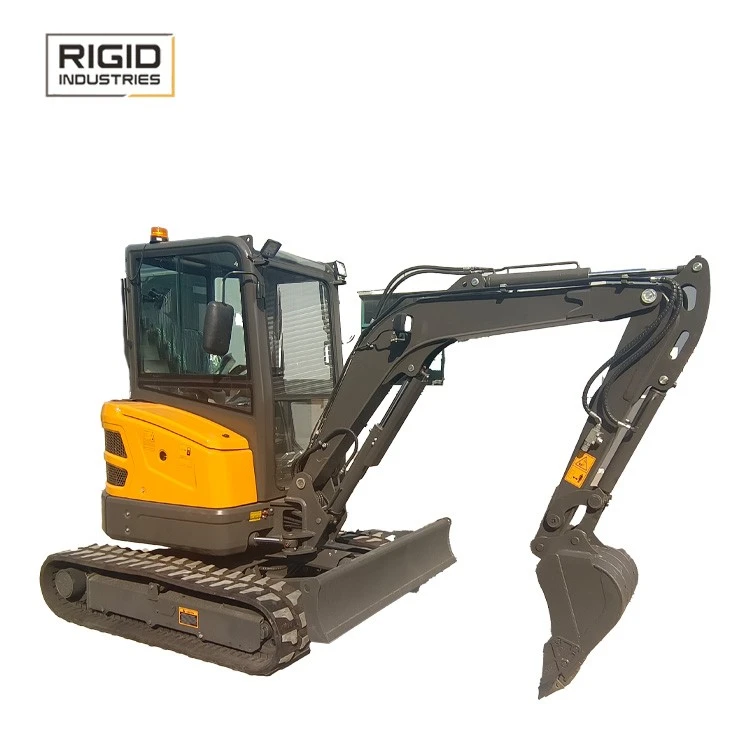

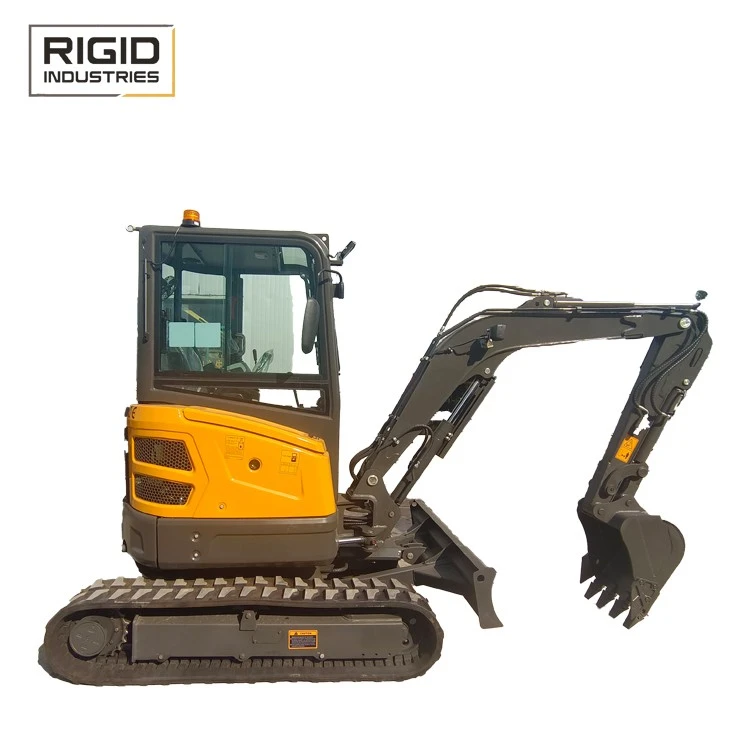

Mini 3t Crawler Excavator
Engine Brand: Kubota
Engine Type: Diesel
Cab: Yes,Cabin with A/C
Hydraulic pilot servo operation system
Standard mounting hydraulic hammer pipeline
Optionally equipped with a hydraulic thumb and hydraulic quick hitch
High machine configuration,The machine operates smoothly and flexibly
Easy to maintain
Available in multiple colors
Mini 3t Crawler Excavator
Product Introduction
The RE30 Mini 3t Crawler Excavator is equipped with a genuine Japanese-made Kubota D1105 engine that can meet both Euro 5 and EPA 4 emission standards.
The main core components of RE30, such as pump and valve systems, as well as rotating parts, are made of imported top quality components.
This Crawler Excavator forearm is made of high-strength steel, which can avoid the risk of deformation or breakage in high-intensity work.
Integral discs are produced in-house and the production line is equipped with automatic robots for better quality control.
The crushing line is equipped as standard, and different kinds of various attachments can be added, such as various kinds of crushing hammers, looseners, wood grabbers, augers and so on.
All excavators accept OEM, Configuration options can be selected based on requirements..
Products Description
|
ENGINE |
|
|
Emission Standard |
EPA4&EURO 5 |
|
Make |
KUBOTA |
|
Model |
D1105 |
|
Power /Rotation Speed |
14kw(19HP)@2,200rpm |
|
Number of Cylinder |
3 |
|
Type |
Water cooled, in-line,4-stroke,mechnical pump. Naturally aspirated |
|
Max. Torque of Engine |
70.3Nm/ 1,600rpm |
|
Displacement of Engine |
1.123L |
|
Engine Oil Capacity |
5.1L |
|
TRACK SYSTEM |
|
|
Max. Travel Speed(High-Low speed) |
2.6/4.5km/h |
|
Width of Track Shoe (Rubber ) |
300mm |
|
Carrier Roller (one side) |
1 |
|
Support Wheel (one side) |
3 |
|
PERFORMANCE PARAMETERS |
|
|
Bucket capacity |
0.1m³ |
|
Width of Bucket |
500mm |
|
Swing Speed |
10rpm |
|
Max. Grade Ability |
58% |
|
Max. Bucket Digging Force |
23.5KN |
|
Max. Arm Digging Force |
14KN |
|
Hydraulic System Pressure |
20.5Mpa |
|
Ground Pressure |
24Kpa |
|
Machine Weight |
2,750kg |
|
Fuel Tank Capacity |
23L |
|
Hydraulic Oil Tank Capacity |
24L |
|
Flow of Main Pump (Variable Piston Pump) |
61.6L/ min |
|
MACHINE SIZE |
|
|
Overall Dimension (L*W*H) |
4,195*1,550*2,480mm |
|
Axle Base (Track Length on Ground) |
1,565mm |
|
Track Gauge |
1,250mm |
|
Min. Ground Clearance |
286mm |
|
Swing Radius At Tail |
860mm |
|
Boom Length |
2,200mm |
|
Arm Length |
1,300mm |
|
WORKING RANGE |
|
|
Max. Digging Height |
4,427mm |
|
Max. Dumping Height |
3,005mm |
|
Max. Digging Depth |
2,830mm |
|
Max. Vertical Digging Depth |
2,530mm |
|
Max. Digging Radius |
4,835mm |
|
Min. Swing Radius At Front |
2,160mm |
|
Max. Lifting Height of Dozer Blade |
308mm |
|
Max. Cutting Depth of Dozer Blade |
363mm |
|
Boom Swing Angle (Left) |
69° |
|
Boom Swing Angle (Right) |
45° |
Method of Payment: T/T, L/C
Minimum order quantity: 1 unit.
Delivery time: 30-45 days.
Customization: Support.
Transportation: Ocean freight.
Incoterms: FOB, CIF.
Mini 3 Ton Crawler Excavator
We are a reliable Mini 3 Ton Crawler Excavator manufacturer in China. Our 3 Ton Excavator is manufactured with high quality materials under a strict quality assurance system. They are designed to withstand the most demanding working conditions.
It is one of our compact excavator models with excellent hydraulic power and digging force. Easy to transport around the jobsite, durable and easy to service.
High-strength steel components and construction. Choice of Yanmar, Kubota and Leyton engines. CE, EPA and ISO certified. Meets international quality and safety standards.
Supports ODM/OEM. Customized engine, logo, boom, cab, etc.
3 reasons to choose Mini 3 Ton Crawler Excavator
Enclosed cabin
-Comfortable and spacious cab
-Large windows for a clear view and better visibility.
-Reduced vibration and noise during operation.
Convenient controls
Low-intensity joystick controls.
-Fast cycle times for switching between jobs.
-Advanced hydraulic system increases power and speed.
Reliable components
-Easily navigates tight spaces.
-Gets the job done with low fuel consumption.
-Powerful engine delivers efficient performance.
Mini 3 Ton Crawler Excavator
The 3 ton excavator RE30 is ideal for trenching, especially when equipped with a trenching bucket.This excavator can dig trenches of varying depths and widths.This excavator can dig trenches of varying depths and widths.
This excavator can dig trenches of varying depths and widths.This excavator offers a good balance of size and power, making it ideal for small to medium-sized trenching jobs.
We don't just make excavators for digging trenches. You can choose from a range of attachments to meet your specific job requirement
more photos
This is our packing process to ensure safe delivery.
Before loading:
- Wash and repaint the vehicle.
- Measure the equipment's dimensions (length x width x height), weight, and center of gravity.
- Inspect vulnerable parts (such as hydraulic hoses, instrument panel, and precision components) and mark protective points.
- Determine whether the equipment needs to be disassembled (e.g., removing the boom, tires, or cab to save space).
Loading preparation:
- Cushioning materials: Foam board, wood strips, air cushion film.
- Reinforcement materials: Wire rope, nylon strapping, angle steel, wooden planks.
- Lay moisture-proof wooden planks inside the container.
Loading:
- Use a forklift/crane to place the equipment on the wooden planks, with the center of gravity near the center of the container.
- Secure the base using specialized fasteners (such as twist locks, anchor bolts) or welded L-brackets.
- Maintain a distance of 10 cm or more between the equipment and the container wall, using wooden planks to prevent sway.
- Long overhangs (such as excavator arms) require additional support frames to prevent deformation.
- Wire rope + tensioner for diagonal securing.
After loading:
Each step is photographed and sent to the customer.
